Over Arm Dust Collection Plans

Over Arm Dust Collection Plans

Eliminate dangerous airborne dust expelled above the table from the blade while cutting. Keep your shop (and your lungs) clean with this over arm dust collector. You'll be amazed at the amount of dust this can capture and wonder how you ever cut without it.

These detailed plans help you gather the right amount of materials, assist you in cutting out the parts with printable templates, and guide you through the assembly with step by step instructions.

About the dust collector

  • Works with any table saw

  • Compatible with riving knife

  • 4 Bar linkage accommodates any stock thickness

  • Hinged design allows over arm to swing out of the way when not needed

  • Sliding side panel to capture edge dust during narrow cuts

These downloadable plans include

  • 54 Page PDF delivered to your email

  • 8 Printable 1:1 templates to help you cut out the tricky parts

  • Dimensions in both inches and millimeters

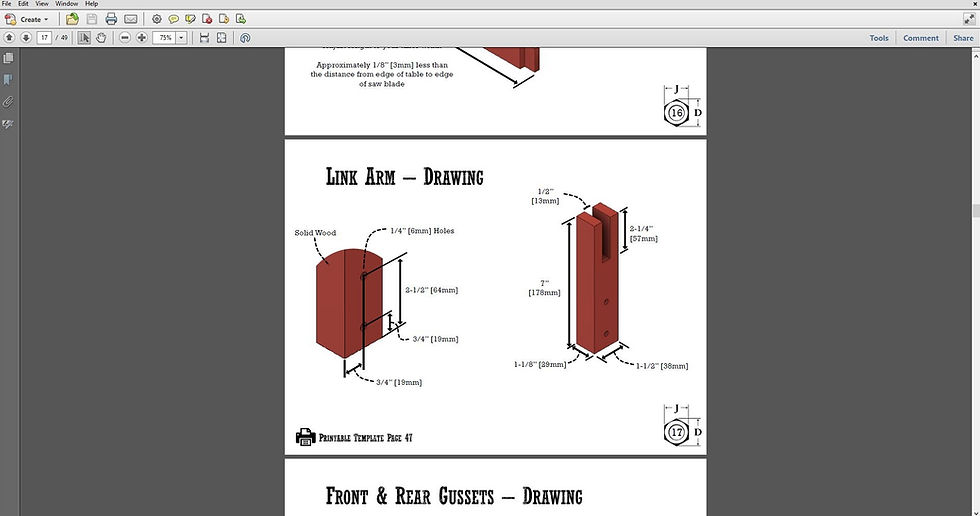

  • Exploded views showing each component and how they go together

  • A list of all the materials and hardware needed

  • Cut lists to help you plan how much material is needed

  • Easy to follow step by step assembly instructions

​See the dust collector article for more info.


Router templates & pre-finished polycarbonate side panels are also avalaible! Check them out to help speed up your build.

Notice:  This dust collector is not a blade guard and is not intended as a safety device.

If you use a PayPal account to purchase these plans, the downloadable PDF will be delivered to your e-mail address that is associated with your PayPal account. A PayPal account is not required. You can also use a credit card at checkout and enter your email to have the plans delivered to.
